Micropiles Drilling Machine FD 1200 S

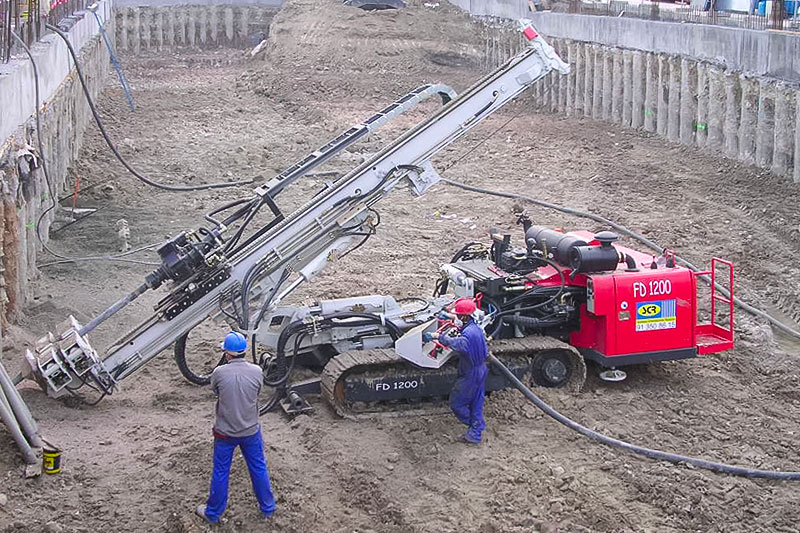

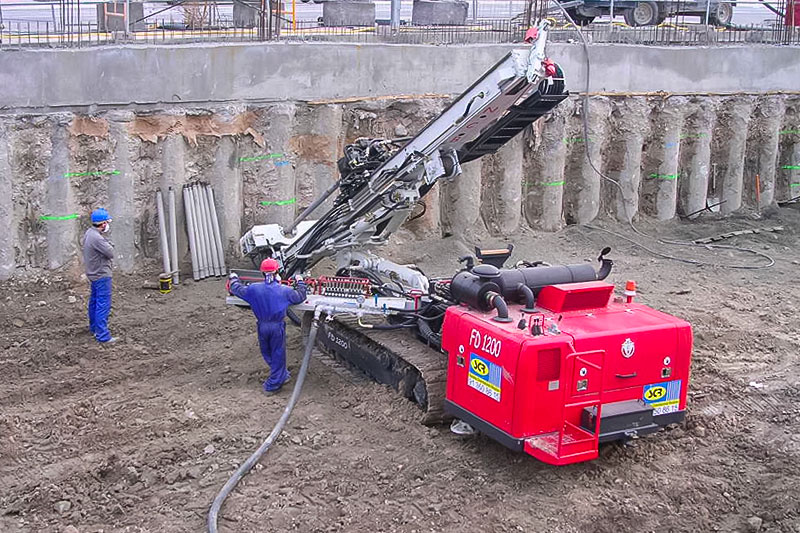

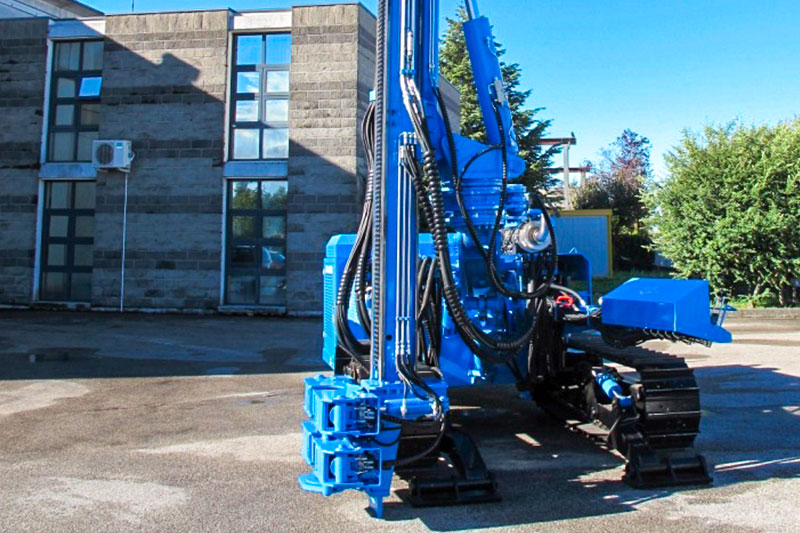

The FD 1200 S micropile drilling machine is a tracked and compact hydraulic drilling rig, with DEUTZ TCD 1011 engine (maximum power 129 kW) and T3-1600 rotary head with speed 0-96 rpm, maximum torque 1200 kgm and 2 DANFOSS hydraulic motors .
The closing vice and the unscrewing vice have a maximum diameter of 250 mm, with a closing force of 15300 daN and 5500 daN respectively.
The ideal solution for foundations, micropiles, tie rods and anchors.

UNDERCARRIAGE

Overall Length3040 mm
Track Width2225 mm
Shoes Width400 mm
Speed0-4 km/h

ENGINE

DEUTZ EngineTCD 1011
Maximum Power Output129 kW
Rated Output2300 r.p.m.
Fuel Tank Capacity140 l

HYDRAULIC SYSTEM

Hydraulic Pumps1st Circuit148 l/min
2nd Circuit76 l/min
3rd Circuit27 l/min
4th Circuit17 l
Hydraulic Oil Tank Capacity370 l
Working Pressure250 bar

MAST

Mast Length6000 mm
Pull-Down Cylinder Force (Push/Pull)4800/9400 kgm
Pull-Down Stroke4600 mm
Maximum Rods Length4000 mm

ROTARY HEAD

T3-1600Maximum Torque1200 kgm
Speed Range 0 - 96 rpm
Number of Hydraulic Motor3
Type of Hydraulic MotorsDANFOSS

WINCH

AUXILIARY WINCH
Maximum pulling force (1st Layer)15 kN
Rope Diameter10 mm

CLAMPS

CLOSING CLAMP
Blocking Clamp Diameter250 mm
Blocking Clamp Force15300 daN
BREAKOUT CLAMP
Blocking Clamp Diameter250 mm
Blocking Clamp Force5500 daN
Break-Out Force15300 daN

WEIGHT

Total Weight- approx10 ton
